OR Zoning: Clean, Sterile and Dirty Corridors

The Three-Zone Model: General, Semi-Restricted, and Restricted

Operating room departments in hospitals are organized into three zones based on the level of cleanliness required and the activities permitted. The general zone includes reception, patient holding, and administrative areas where street clothes are acceptable. The semi-restricted zone includes corridors connecting changing rooms to the OR suite, where scrub attire is required but sterile procedures do not occur. The restricted zone includes the operating rooms themselves, sub-sterile rooms, and the sterile supply corridor where instruments are cleaned, sterilized, and stored.

This zoning model exists for a single reason: to control the movement of airborne particles and microorganisms from dirty areas to sterile areas. Each zone boundary uses physical barriers (doors, airlocks, pressure differentials) to create a gradient of cleanliness that peaks in the operating room and decreases as you move toward the building exterior. Without this gradient, airborne contamination from corridors, storage areas, and non-sterile activities would reach the surgical field.

Clean, Sterile, and Dirty Corridor Layouts

The corridor system is the backbone of OR zoning. Three corridor types serve different traffic flows. Clean corridors carry sterilized instruments from the sterile processing department to the operating rooms. Sterile corridors connect the sub-sterile rooms adjacent to each OR, providing a buffer where staff can gown and glove without entering the main corridor. Dirty corridors carry used instruments and waste from the OR to the decontamination area without crossing clean or sterile paths.

The pressure differentials in this table are the engineering mechanism that prevents contamination migration. Air always flows from higher pressure to lower pressure. By maintaining the sterile corridor at the highest pressure, the clean corridor at a lower positive pressure, and the dirty corridor at negative pressure relative to the OR zone, the ventilation system creates a one-way airflow path that carries particles away from the surgical field.

Pressure Differentials and Airflow Direction

The pressure gradient is the invisible wall that makes OR zoning work. A differential of 5 to 15 pascals between adjacent zones is sufficient to prevent airborne particle migration when doors are closed. When doors open, the pressure equalizes temporarily, which is why OR doors should remain closed during surgery except for essential traffic. Some designs use sliding doors or interlocking door systems that prevent two doors in an airlock from opening simultaneously.

ISO Class 7 (equivalent to Class 10,000) is the typical target for operating room air quality, meaning no more than 352,000 particles of 0.5 micrometer or larger per cubic meter of air. ISO Class 8 (Class 100,000) is used for semi-restricted corridors and preparation areas. Sanyang Medical’s modular OR system is designed to achieve ISO Class 7-8 clean envelope, with factory-finished wall and ceiling modules that minimize joints and crevices where particles can accumulate. The modular construction approach also ensures consistent surface materials that withstand hospital-grade disinfectants without degradation.

The One-Way Traffic Principle

Beyond the physical barriers and pressure gradients, OR zoning depends on traffic control. The one-way traffic principle states that clean and sterile items move in one direction (from CSSD to OR) and dirty items move in a separate direction (from OR to decontamination). The two paths must not cross. In a well-designed OR department, the layout creates a circular flow: sterilized instruments enter through the clean corridor, are used in the OR, then exit through the dirty corridor to the decontamination room, which connects back to the CSSD sterilization area.

This circular flow eliminates the most common contamination pathway: using the same corridor to transport clean instruments in and dirty instruments out. When this happens, the clean instruments are exposed to the bacterial load of used surgical instruments and waste. The solution is either a dual-corridor layout (clean and dirty corridors on opposite sides of the OR suite) or a single-corridor layout with strict time separation (no dirty transport during active surgery). The dual-corridor layout is preferred for new construction because it allows simultaneous clean and dirty transport without risk.

Zone Violations and Their Consequences

• Staff entering OR in street clothes: Introduces street-borne particles and microorganisms. Requires gowning in the semi-restricted zone before entering the restricted zone.
• Dirty transport through clean corridor: Cross-contaminates the clean pathway. Must route through dirty corridor even if it is a longer path.
• OR door left open: Equalizes pressure, breaks the gradient, allows corridor air to enter the sterile field. Sliding doors with automatic closure mitigate this risk.
• Inadequate pressure differential: If the HVAC system cannot maintain 5 Pa minimum between zones, the airflow barrier fails and contamination migration occurs regardless of physical layout.

For a broader view of how OR zoning fits into the overall suite layout, the OR suite planning guide covers room adjacencies, patient flow, and staff circulation patterns that complement the zoning design.

Modular OR Construction and Zoning Integration

Sanyang Medical’s turnkey operating room system integrates zoning requirements into the factory-finished modules. Wall and ceiling panels arrive pre-cut with integrated air handling connections, medical gas outlets, and electrical pass-throughs. The modular approach reduces on-site construction time from months to weeks and ensures that the clean envelope is sealed at every joint because the joints are factory-welded or factory-sealed rather than field-applied.

The modular system also simplifies the pressure differential management. Each OR module includes a dedicated air handling connection point designed for the airflow rate and pressure regime required for ISO Class 7. The corridor modules include pressure relief dampers that allow controlled air movement between zones without requiring field-engineered HVAC modifications. For facilities planning a new OR suite, Sanyang Medical provides turnkey operating room solutions with free 3D layout design delivered within 3 working days, allowing the project team to visualize zoning and corridor flow before construction begins.

Existing OR Renovation: Zoning Challenges

Retrofitting zoning into an existing OR department is more complex than new construction because the physical layout may not support the clean-dirty separation. Older hospitals often have a single corridor serving both clean and dirty traffic, with no physical space to add a second corridor. In these cases, the practical approach is to establish time-based separation: dirty transport occurs only after the daily surgical schedule is complete and the clean corridor has been terminally cleaned.

Pressure differentials can be retrofitted more easily than physical corridors. Adding variable air volume (VAV) controls to the existing HVAC system, installing pressure relief dampers between zones, and adding door interlocks can establish the required pressure gradient without structural changes. The key measurement is the pressure differential at each zone boundary, which should be monitored continuously and alarmed when it falls below 5 Pa. For guidance on renovating existing ORs, the OR layout and dimensions guide covers dimensional constraints that affect zoning retrofits.

Supporting Systems That Make Zoning Work

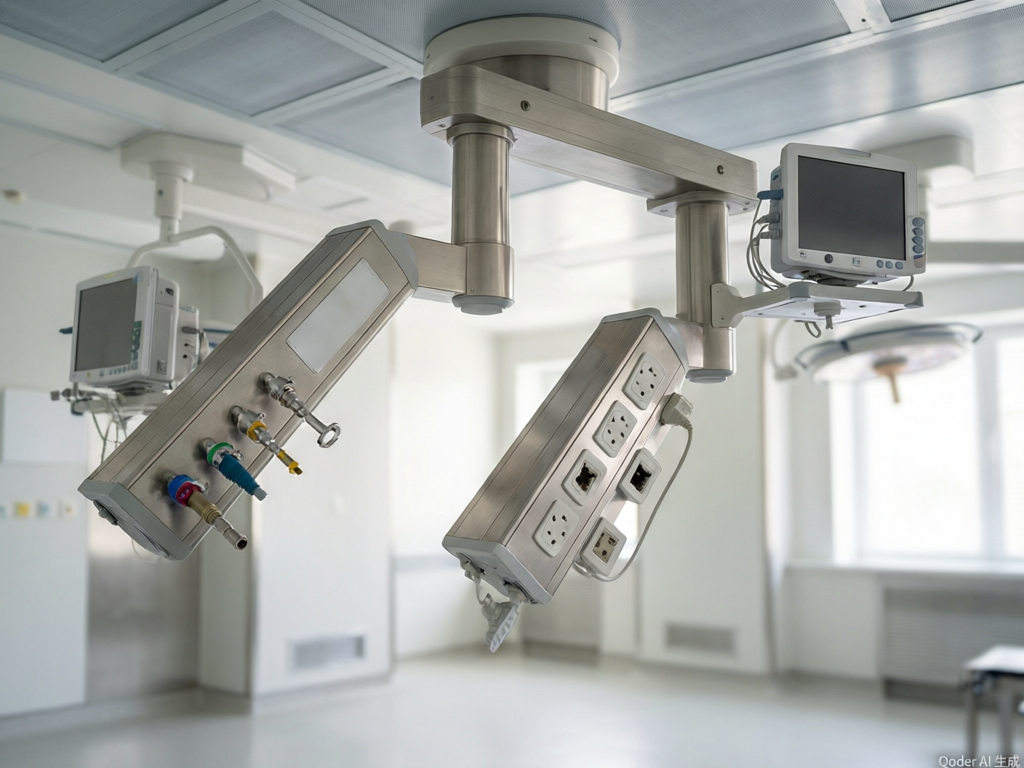

Zoning does not function in isolation. Three supporting systems must be designed in parallel with the zoning layout. First, the medical gas pipeline system must deliver oxygen, medical air, and vacuum to each zone according to the activities performed there. The medical gas pipeline design guide covers outlet zoning and pressure requirements.

Second, the laminar airflow system in the OR must supply unidirectional filtered air over the surgical field, with the return air grilles positioned to sweep particles away from the sterile field. The laminar airflow design guide explains the airflow patterns and filter specifications that maintain ISO Class 7 in the operating room.

Third, the modular construction system must provide surfaces that can withstand daily disinfectant cleaning without degradation. Modular wall panels with seamless joints and antimicrobial coatings are the standard for OR zoning integrity. The modular OR construction guide covers the panel systems, joint sealing, and surface materials that maintain the clean envelope over the facility’s lifecycle.

Frequently Asked Questions

What is the minimum pressure differential between OR zones?

A minimum of 5 pascals between adjacent zones is required to prevent airborne contamination migration. Best practice is 10 to 15 Pa between the sterile corridor and the OR to provide a safety margin that accounts for door opening and HVAC fluctuations.

Can a single corridor serve both clean and dirty traffic?

Only with strict time separation. Dirty transport must occur after the surgical schedule is complete and the corridor has been terminally cleaned. New construction should use dual corridors with no path crossing. Single-corridor layouts are acceptable only when no alternative exists.

What ISO cleanroom class applies to operating rooms?

Operating rooms target ISO Class 7 (maximum 352,000 particles per cubic meter at 0.5 micrometer). Semi-restricted corridors and preparation areas use ISO Class 8 (maximum 3,520,000 particles per cubic meter). The classification is measured under operational conditions with staff present.

How does modular OR construction maintain zone integrity?

Factory-finished wall and ceiling modules have sealed joints, integrated air handling connections, and pre-installed pressure relief dampers. The modular approach eliminates field-applied sealants and joints that can degrade over time, maintaining the clean envelope throughout the facility lifecycle.
