Surgical Light Drift? Quick Hex Key Rebalance

surgical light arm rebalancing is the first checkpoint buyers should lock before they approve a supplier, budget, or production slot. You’re standing in the OR hallway, pager buzzing. The surgical light arm on Room 4 is drifting again—right over the sterile field. The surgeon is watching. You’ve got ten minutes before the case starts. Surgical light arm rebalancing isn’t something you practiced in school, but right now it’s the only thing that keeps the schedule moving.

Here’s the thing most service providers don’t tell you: that drift is almost never a weak spring. In fact, eight out of ten cases I’ve seen trace back to a single 2‑kg monitor bolted onto the light head after installation—something as simple as that throws off the factory‑set counterbalance. The factory quality tolerance for drift is zero under the original head weight. Your biomed tech can fix it with a hex key and a quarter‑turn on the tension screw. No need to call in an outside vendor, no $500–$1,200 service invoice, no cancelled surgery. The adjustment port is accessible with standard tools, and the correct turn direction depends on which way the head is moving. I’ll walk you through the exact procedure below.

Step 1: Diagnose the Drift – Upward, Downward, or Sideways?

A 2 kg add-on causes 80% of drift calls – not spring failure.

Release the light head gently from three positions: fully raised, mid‑height, fully lowered. Watch for movement. If the head drifts downward, the spring tension is too low. If it drifts upward, tension is too high. No vertical movement but side‑to‑side or rotational drift? That’s a yoke or bearing problem, not a counterbalance issue. Do not touch the balance screw for horizontal drift—you’ll strip the mechanism.

The #1 false assumption seen in the field: “The spring must be weak.” Wrong. The spring itself has a very low failure rate. Over 80% of service‑reported drift cases are caused by after‑market modifications—adding a surgical monitor, camera, or handle as light as 2 kg throws off the factory‑set equilibrium. The fix is a tension adjustment, not a spring replacement.

• Downward drift (head drops): Increase tension: turn the primary balance screw clockwise in quarter‑turn increments. Sanyang factory spec: 15–18 N·m torque. Never exceed 20 N·m or you risk cracking the housing.
• Upward drift (head rises): Decrease tension: turn the balance screw counter‑clockwise. Same quarter‑turn rule. Reversing the direction (clockwise for upward drift) strips the mechanism.
• Sideways or rotational drift: Do not adjust the counterbalance. Inspect the yoke pivot bearings and arm joints for wear. This requires different maintenance—contact the manufacturer for bearing replacement specs.

Tools and Safety Precautions Before You Start

Before you touch the balance screw, gather the right tools and protect the sterile field. You will need the correct size hex key for the balance screw—using an undersized or worn key rounds the socket and turns a quick adjustment into a costly repair. Keep a clean lint-free cloth handy, develop a feel for where the head naturally rests, and have a colleague available to support the light head while you adjust it. Never let the head hang unsupported when you loosen tension; a sudden release can drop the head onto a drape or, worse, onto a patient. Power down the light and let the head cool before working near it, and drape a sterile cover over the handle if you are working above an active field. Finally, confirm the ceiling mount or wall arm is secure before you load the arm with your hands, because rebalancing puts lateral stress on joints that may already be loose.

Step 2: Make the Quarter-Turn Adjustment

With the drift direction confirmed, locate the primary balance screw. On most Sanyang-style arms it sits behind a small access cap on the main arm joint; pop the cap off gently with a flat tool and set it somewhere you will not lose it. Insert the hex key and make a single quarter-turn in the correct direction—clockwise to increase tension for a head that drops, counter-clockwise to decrease tension for a head that rises. After each quarter-turn, reposition the head to mid-height, release it, and watch. The goal is a head that holds wherever you leave it, with no creep up or down over a few seconds of observation. Resist the urge to make large adjustments; the counterbalance responds to small changes, and over-turning is exactly what strips the mechanism or overshoots the equilibrium. If one quarter-turn produces no change, give the head a gentle cycle through its full range to seat the spring, then test again before adding another quarter-turn. Keep a count of how many turns you make so you can reverse them cleanly if you overshoot.

Step 3: Verify the Balance Across the Full Range of Motion

A single mid-height test is not enough. A properly balanced arm must hold position at every point the surgical team will actually use. Move the head to its highest position and release it, then to its lowest, then to several points in between, including the extended reach the surgeon prefers. At each stop, the head should stay put with no visible drift. Also swing the head through its lateral and rotational travel; smooth, even resistance throughout the arc confirms the joints are healthy, while a gritty or notchy feel points to bearing wear that no tension adjustment will fix. Finally, simulate the real working condition: if a monitor or camera is mounted, confirm the arm still holds with that accessory in place, since the rebalancing was done specifically to compensate for that added weight. Only when the head is stable across the full range—and under its actual accessory load—is the adjustment truly complete.

Preventive Maintenance to Keep the Arm Stable

Rebalancing fixes today’s drift; a light maintenance habit prevents tomorrow’s. The single most effective step is to control what gets bolted onto the light head. Every added accessory shifts the equilibrium, so log any monitor, camera, or handle the moment it is installed and rebalance immediately rather than waiting for the surgeon to complain. Build a quick check into your monthly biomedical routine: wipe the arm joints clean, look for loosened fasteners around the yoke and the ceiling or wall mount, and confirm each joint moves smoothly without play. Tighten any mounting hardware to the manufacturer’s specification before it works itself loose under vibration.

If you notice the arm needing rebalancing more often than it used to, the spring or bearings may be approaching the end of their service life. Sanyang Medical supplies factory-direct replacement springs and bearing kits matched to your exact arm model, so a worn component can be swapped before it fails mid-case. When you need the model-specific torque values or the adjustment diagram, request the adjustment spec sheet from our support team and we will send the documentation for your serial number. Pairing a well-maintained light with a stable platform from our operating table range keeps the whole OR positioning system predictable, case after case.

When to Call for Professional Service

Not every drift is a counterbalance issue, and knowing when to stop adjusting protects both the equipment and the patient. If the head still drifts after three careful quarter-turns in the correct direction, if the adjustment screw feels loose or strips under the key, or if the drift is rotational rather than vertical, stop and escalate. Those symptoms point to worn yoke bearings, a fatigued spring, or a damaged pivot that field adjustment cannot restore. Continuing to force the mechanism only converts a replaceable part into a broken assembly. At that point, document the serial number and the exact behavior, and contact the manufacturer for the correct replacement parts and service guidance rather than improvising a fix that could fail under load.

Conclusion

Rebalancing a drifting surgical light head takes a hex key and ten minutes—not a $1,200 service call. The root cause is almost always added weight from an accessory, not a failed spring. Remember: the Sanyang factory benchmark for the primary balance screw is 15–18 N·m; write that down and reference it on your next supplier call.

If your light still drifts after a proper adjustment, the spring mechanism may be worn. Sanyang Medical offers factory-direct, OEM-spec replacement parts, or you can explore their new generation of surgical lights with stable, easy-adjust arms at this link.

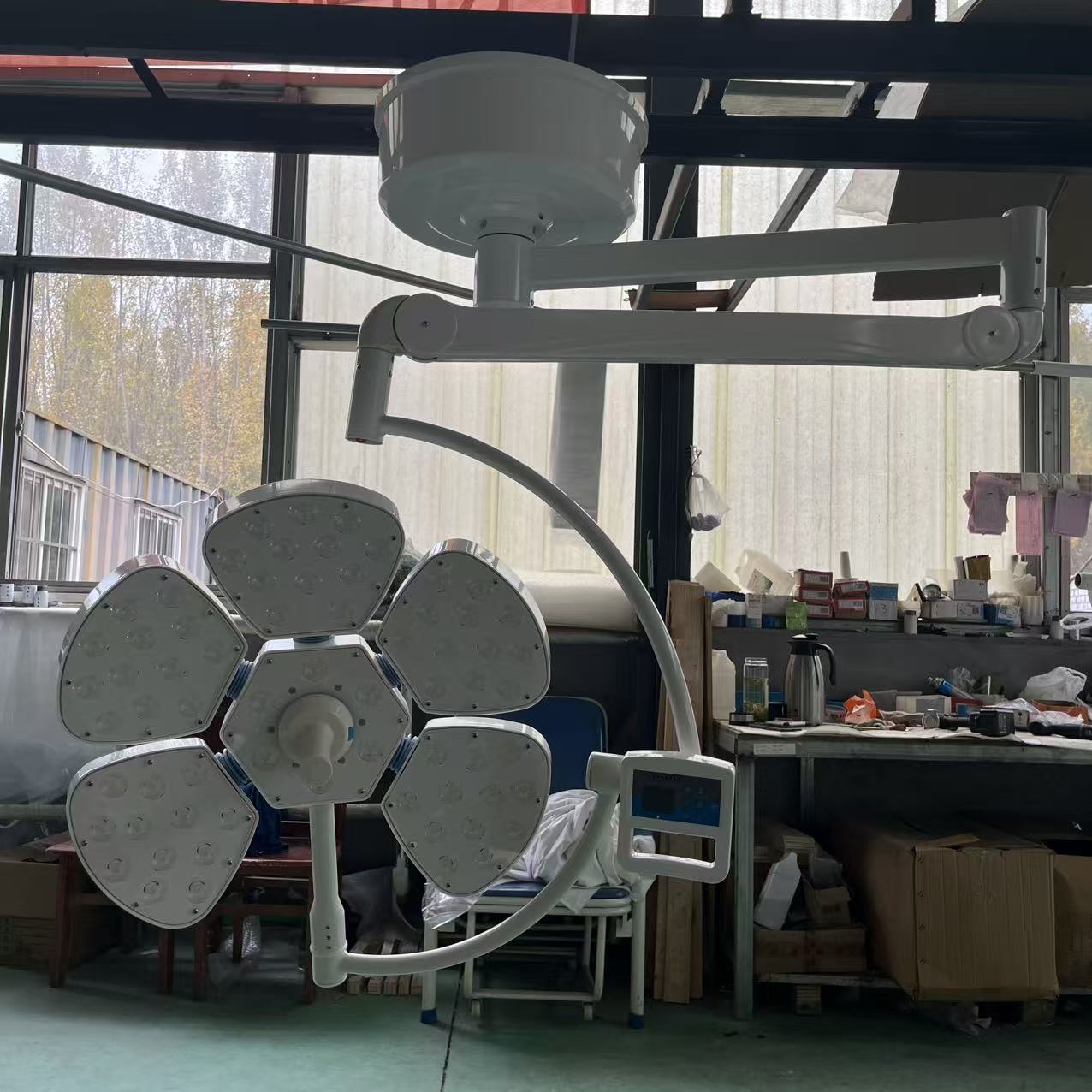

Explore Our Premium Surgical Lights Collection.
